英特尔E1G42ET（82576）PCI-E双口服务器网卡

产品介绍

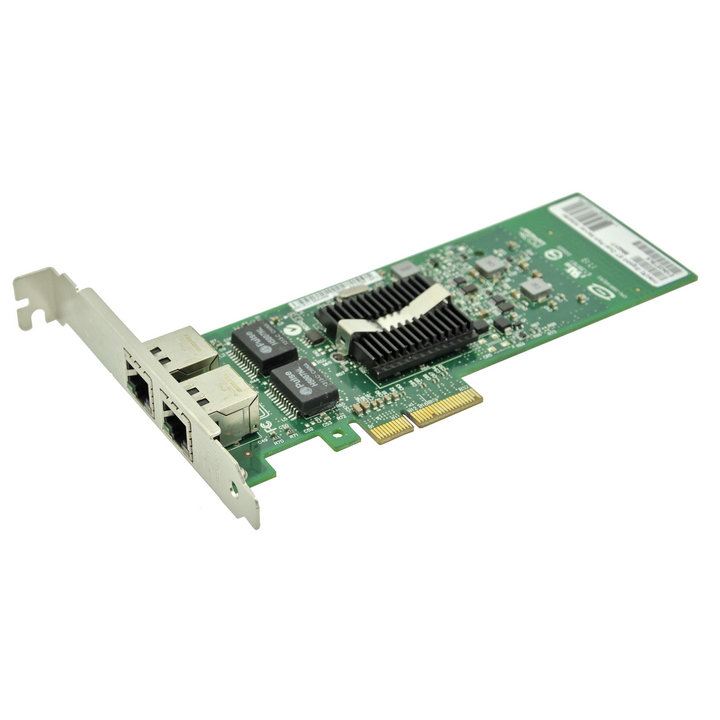

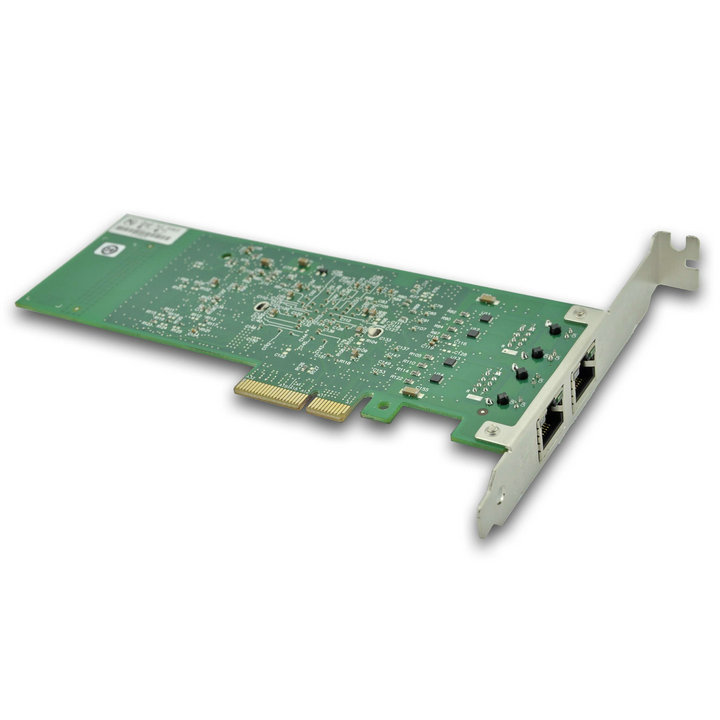

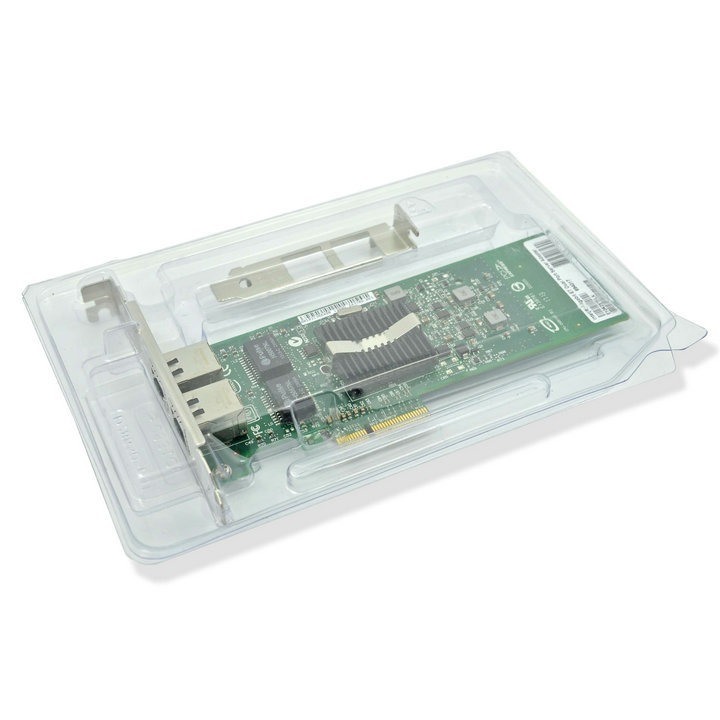

INTEL ETHERNET SERVER ADAPTER E1G42ET
双口千兆服务器网卡

PRODUCT CODE:   E1G42ET

Introduction
The Intel® 82576 Gigabit Ethernet Controller is a single, compact, low power component that offers two fully-integrated Gigabit Ethernet media access control (MAC) and physical layer (PHY) ports. This device uses the PCIe* v2.0 (2.5GT/s). The Intel® 82576EB Gigabit Ethernet Controller enables two-port implementation in a relatively small area and can be used for server system configurations such as rack mounted or pedestal servers, where the Intel® 82576EB Gigabit Ethernet Controller can be used as add-on network interface card (NIC) or local area network on motherboard (LOM) design. Another system configuration is blade servers, where it can be used as LOM. The Intel® 82576EB Gigabit Ethernet Controller can also be used in embedded applications such as switch add-on cards and network appliances.

Specifications
General
Connectors  :                   RJ-45 (Copper)
IEEE standard/network topology :   1000BASE-T
Cabling Copper                  Category-3 or higher for 10BASE-T operation
Category-5 or higher for 100BASE-TX operation
Category-5e or higher for 1000BASE-T operation
Technical
Data rate supported per port:    10/100/1000 Mbps (Copper)
Bus type :                    PCI Express* 2.0 (2.5 GT/s)
Bus width :                   4-lane PCI Express; operable in x4, x8 and x16 slots
Interrupt levels :               INTA, INTB, INTC, INTD, MSI, MSI-X
Controller-processor:           Intel Ethernet Controller 82576
Power consumption (typical) :    82576  2.8 W
Operating temperature :        0℃to 55℃ (32℉to 131℉)
Storage temperature :          -40℃to 70℃ (-40℉ to 158℉)
Storage humidity :             90% non-condensing relative humidity at 35 ¡ãC
Connect Speed LED Indicators :   amber=1 Gb/s

Advanced Technologies
Intel® Virtualization Technology for Connectivity   VMDc(SR-IOV with mobility),
VMDq, Intel® I/OAT
MACsec IEEE 802.1 AE     Yes
IEEE 1588    Yes

Physical Dimensions
Length:                      13.54 cm (5.33 in.)
Width:                       6.89 cm (2.71 in.)
Full-height end bracket:         12.0 cm (4.725 in.)
Low-profile end bracket :        7.92 cm (3.117 in.)

Supported Operating Systems:
Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, , VMware ESX/ESXi*
