Description

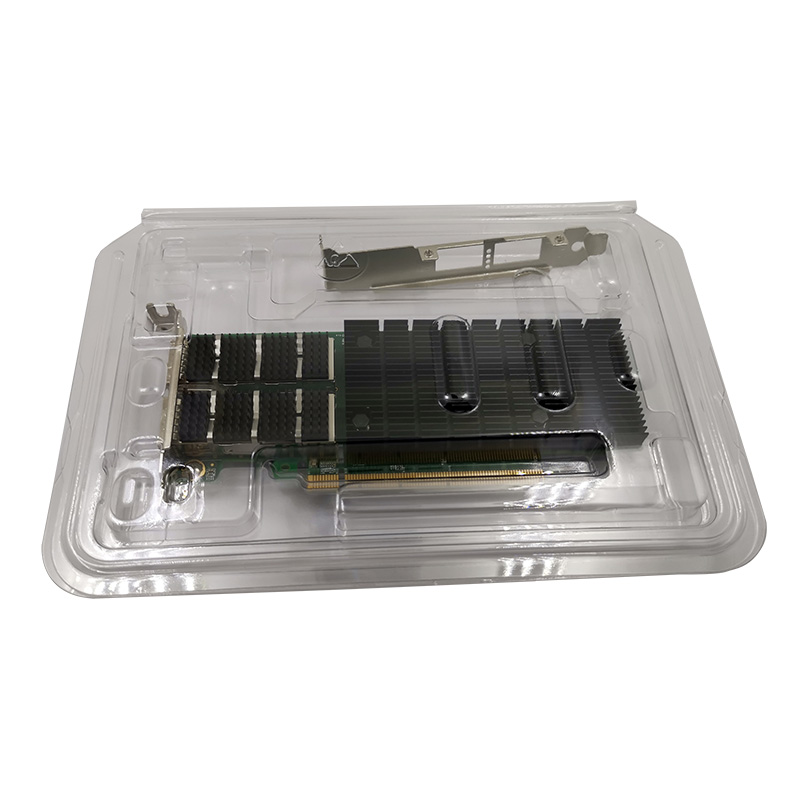

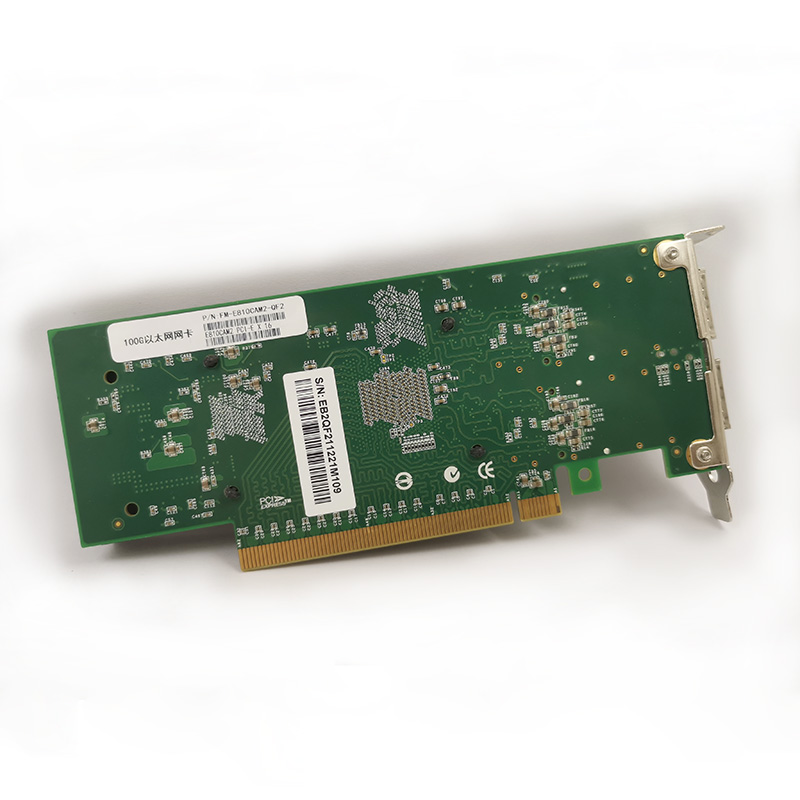

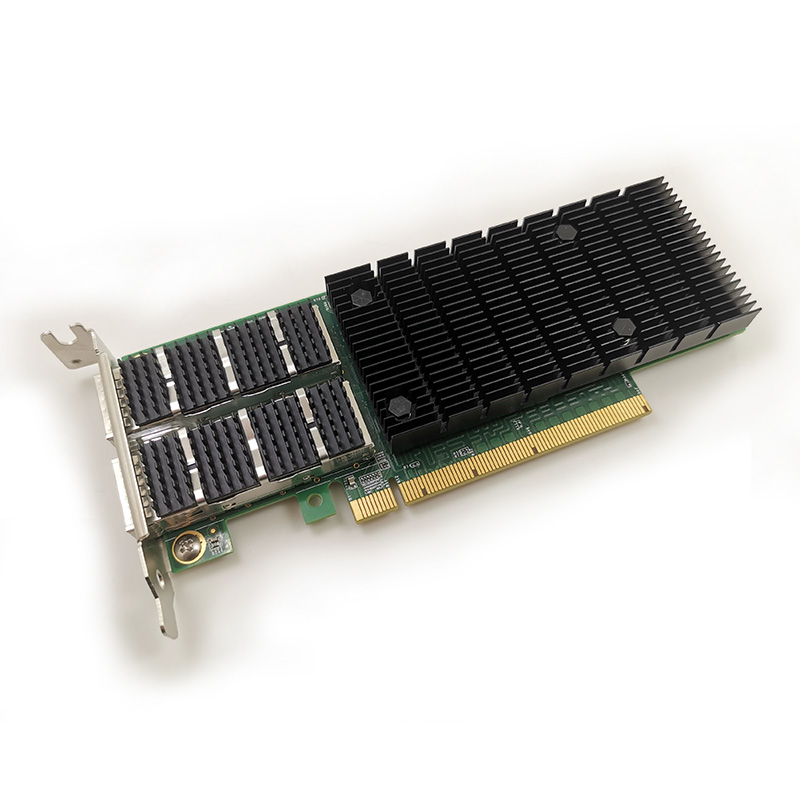

E810CAM2-QF2 is a dual port fibre adapter, based on intel E810-CAM2 chipset. Each port supports 100G transmission bandwidth and supports PCI-E 4.0/30 X16 standard slot, ensuring high-performance server workloads such asNFV, storage, HPC-AI, andhybrid cloud. In addition, the network card also supports VLAN, QoS policy, flow control and other functions, which is suitable for medium and large LAN applications
Key Features
• Supports multiple port speeds with a single architecture: 100/50/25/10/1GbE
• Application Device Queues (ADQ)
• Dynamic Device Personalization (DDP)
• Enhanced Data Plane Development Kit (DPDK)
• iWARP and RoCEv2 Remote Direct Memory Access (RDMA)
• Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
• Enhanced server virtualization: 256 VFs, 768 VSIs
• Optimized Advanced Transmission Scheduler
• Extensive Network protocol support
• IEEE 1588 Precision Time Protocol (PTP)
• Hardware Root of Trust with Firmware Recovery
Technical Specifications

PCI Express 3.0/4.0 x16, x8 Network Interface Features | Link Establishment State Machine (LESM) | Flexible Ethernet Port Configuration with Ethernet Port Configuration Tool (EPCT) | Up to 2 100Gb/50Gb connections or 4 25Gb connections or 8 10Gb connections | 100Gb: 100GBASE-CR4/KR4, CAUI-4, 100GBASE-CR2/KR2, 100GAUI-2, 100GAUI-4 | 50Gb: 50GBASE-CR2/KR2, 50GBASE-CR/KR, 50GAUI-1/-2, LAUI-2 | 25Gb: 25GBASE-CR/KR, 25G-AUI C2C/C2M, 25GBASE-CR1/KR1 | 10Gb: 10GBASE-KR, 10G SFI/SFP+ |
Pipeline | Fully programmable pipeline with enhanced Dynamic Device Personalization (DDP) |
Virtualization Features | 8 Physical Functions (PF) | SR-IOV with up to 256 Virtual Functions (VF) | 768 Virtual Station Interfaces (VSI) | Microsoft VM Queue (VMQ) | VMware NetQueue |
Traffic Steering | Receive Side Scaling (RSS) | Intel® Ethernet Flow Director | Application Device Queues |
Stateless Offloads | TCP Segment Offload (TSO) | UDP Segment Offload (USO) | Large Segment Offload (LSO) | Checksum Offload (TCP/UDP/IP) |
Overlay Network Stateless Offload | VxLAN | GENEVE | GRE |
Quality of Service (Qos) | Priority Code Point (PCP) | Differentiated Services Code Point (DSCP) | Data Center Bridging (DCB/DCB-X) | Enhanced Transmission Selection (802.1Qaz) | Priority-based Flow Control (802.1Qbb) | Advanced Transmission Scheduling |
Converged Storage Network | iSCSI | SMB Direct | iSER | NVMe over RDMA (iWARP and RoCEv2) | Storage Performance Development Kit (SPDK) | NVMe over TCP |
Precision Clocks Synchronization | IEEE 1588 Precision Time Protocol, per packet time stamping |
Network Boot | Signed UEFI option ROM compatible with HTTPS boot |
Management | NC-SI over MCTP | NC-SI over SMBus | MCTP over PCIe | BMC | PLDM and PLDM based firmware update |

Operating Temperature: 0 °C to 105 °C Storage Temperature: -40 °C to 115 °C | | Intel® Ethernet Controller E810 |
| | Products formerly Columbiaville |
| | Launched |
| | Q3'20 |
| | 2H'27 |
| | 16 nm |
Operating System Support | | $375.00 |
WindowsServer2016 | | 0°C to 105°C |
WindowsServer2016 R2 WindowsServer2019 WindowsServer2019 R2 Ubuntu 16.10 or later Linux RHEL 7.x/8.0 Linux SLES 12.x or later Linux Ubuntu 16.x/18.x LTS Linux FreeBSD 11.x/12.x | | 105 °C |
