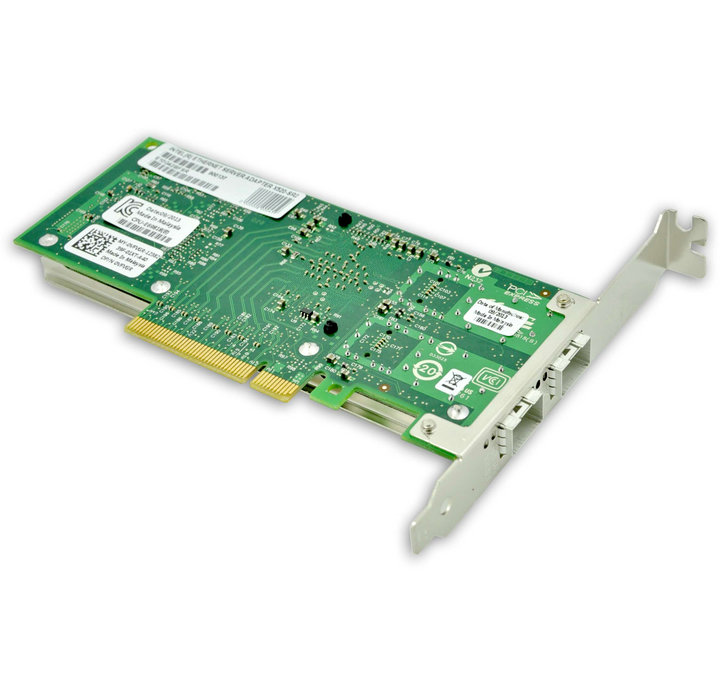

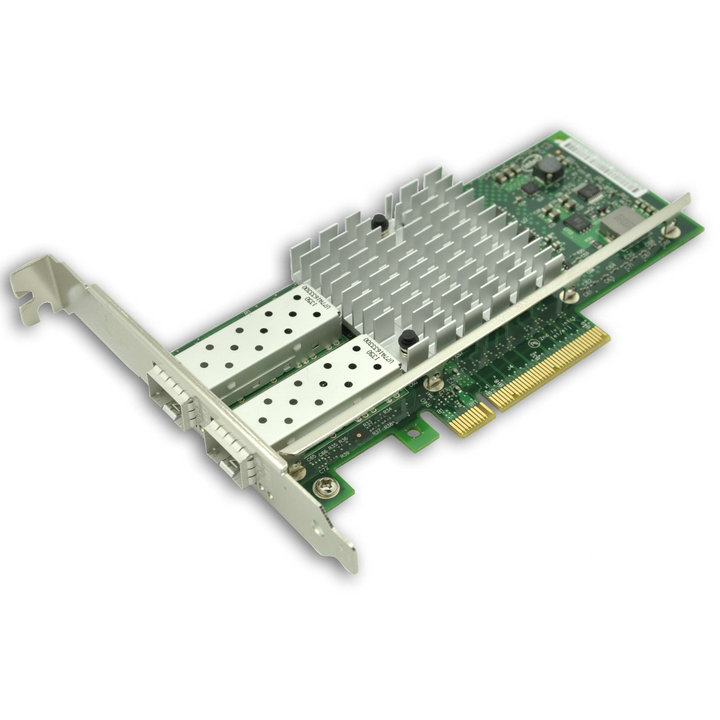

Intel E10G42BTDA(X520-DA2/82599ES)PCI-E万兆以太网卡服务器适配器

产品介绍

万兆双口光纤以太网卡

PRODUCT CODE: E10G42BTDA  X520-DA2

Key Features

l 82599 10 Gigabit Ethernet Controller : Industry-leading, energy-efficient design for next-generation 10 Gigabit performance Intel and multi-core processors

l SFP+ Connectivity: X520 Adapters with SFP+ connections support 10GBASE-SR, 10GBASE-LR and SFP+ Copper Direct  Attach physical media.

l Low-profile : Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers

l Load balancing on multiple CPUs : Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*

l iSCSI remote boot support:Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions

l : Includes FCoE Boot and Data Center Bridging

l Support for most network operating systems (NOS): Enables widespread deployment

l Intel PROSet Utility for Windows* Device Manager: Provides point-and-click management of individual adapters, advanced adapter features, connection  teaming, and virtual local area network (VLAN) configuration

l Time Sync (IEEE 1588*, 802.1as):Enables networked Ethernet equipment to synchronize internal clocks according to a network master clock; endpoint can then acquire an accurate estimate of the master time by compensating for link latency

Specifications

General

Connectors  :                   One or two LC fiber-optic connectors

SFP+ Direct Attach cables (E10G42BTDA)

Network Standards   :           IEEE 802.3:

Physical Layer Interface           10GBASE-SR (E10G41BFSR, E10G42BFSR)

10GBASE-LR (E10G41BFLR)

SFF-8431:

10GSFP+Cu (a.k.a. Direct Attach)

(E10G42BTDA)

Technical

Data rate supported per port:    Optical: 1 GbE/10 GbE

Direct Attach: 10 GbE

Bus type :                    PCI Express* 2.0 (5 GT/s)

Bus width :                   4-lane PCI Express; operable in x4, x8 and x16 slots

Interrupt levels :               INTA, MSI, MSI-X

Controller-processor:           Intel 82599 Ethernet Controller

Power consumption  :

SKU                                 Maximum Power        Typical Powe

Dual-port 10GBASE-SR/1000BASE-SX     6.8 W                  6.5 W

Dual-port 10GBASE-LR/1000BASE-LX      7.0 W                 6.6 W

Dual-port direct attached twinax          6.2 W                 5.8 W

Single-port 10GBASE-SR/1000BASE-SX    4.8 W                 4.5 W

Single-port 10GBASE-LR/1000BASE-LX    4.8 W                 4.5 W

Single-port direct attached twinax        4.6 W                  4.3 W

Operating temperature :        0℃to 55℃ (32℉to 131℉)

Storage temperature :          -40℃to 70℃ (-40℉ to 158℉)

Storage humidity :             90% non-condensing relative humidity at 35 ¡ãC

Connect Speed LED Indicators :   LINK (solid) and ACTIVITY (blinking)

LINK SPEED (green=10 Gbps; yellow=1 Gbps)

Advanced Technologies

Intel® Ethernet Power Management  Yes

Intel® Data Direct I/O Technology        Yes

Intelligent Offloads                Yes

Storage Over Ethernet              iSCSI , FCoE , NFS

Intel® Virtualization Technology for Connectivity

On-chip QoS and Traffic Management      Yes

Flexible Port Partitioning                 Yes

Virtual Machine Device Queues (VMDq)     Yes

PCI-SIG* SR-IOV Capable                 Yes

Physical Dimensions

Length:                      13.54 cm (5.33 in.)

Width:                       6.89 cm (2.71 in.)

Full-height end bracket:         12.0 cm (4.725 in.)

Low-profile end bracket :        7.92 cm (3.117 in.)

Supported Operating Systems:

Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008* SP2, Windows Vista* SP2, Windows Server 2003 R2*, Windows Server 2003* SP2, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, VMware ESX/ESXi*
