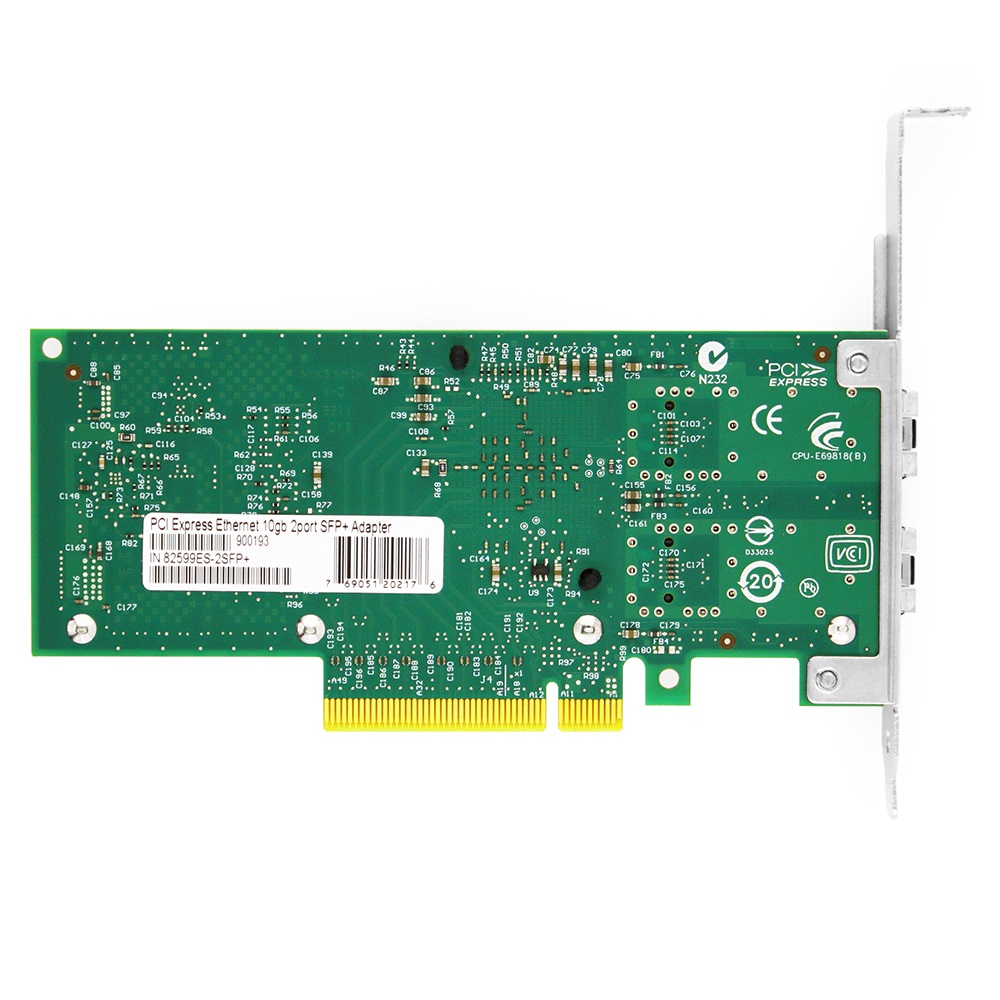

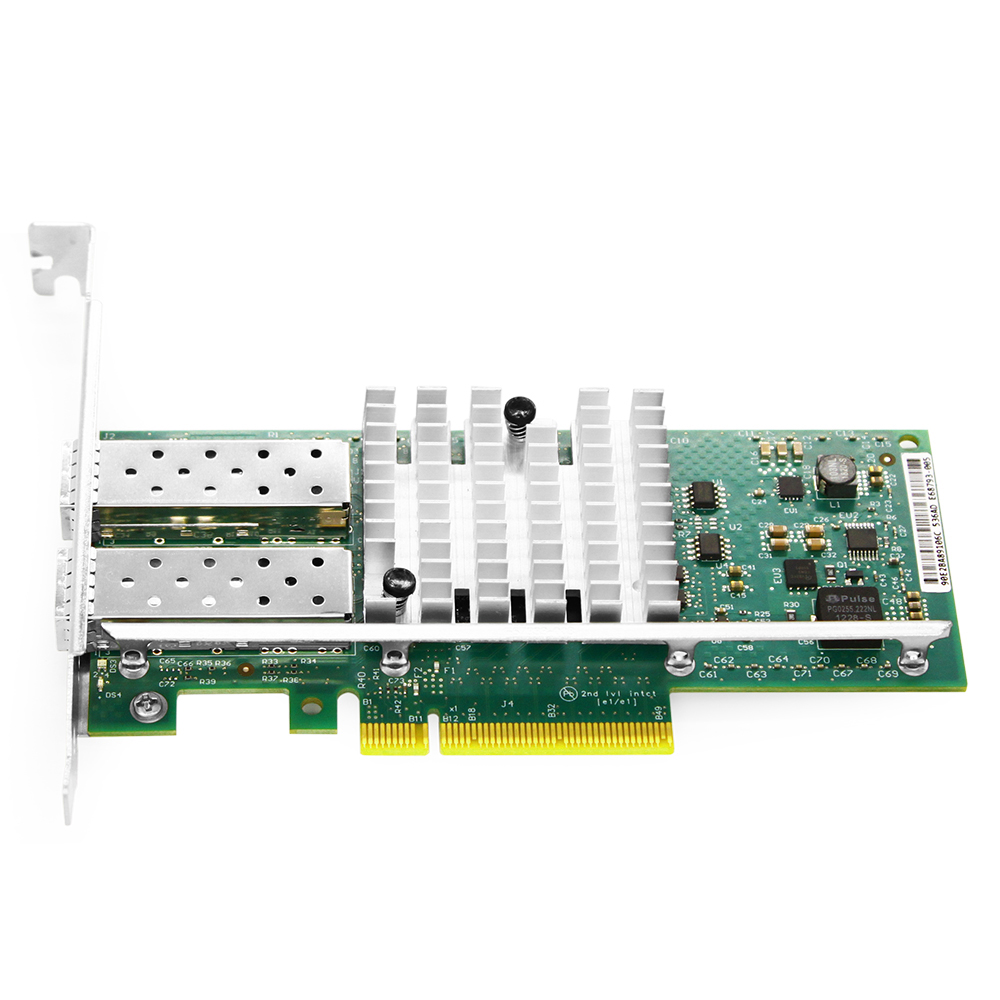

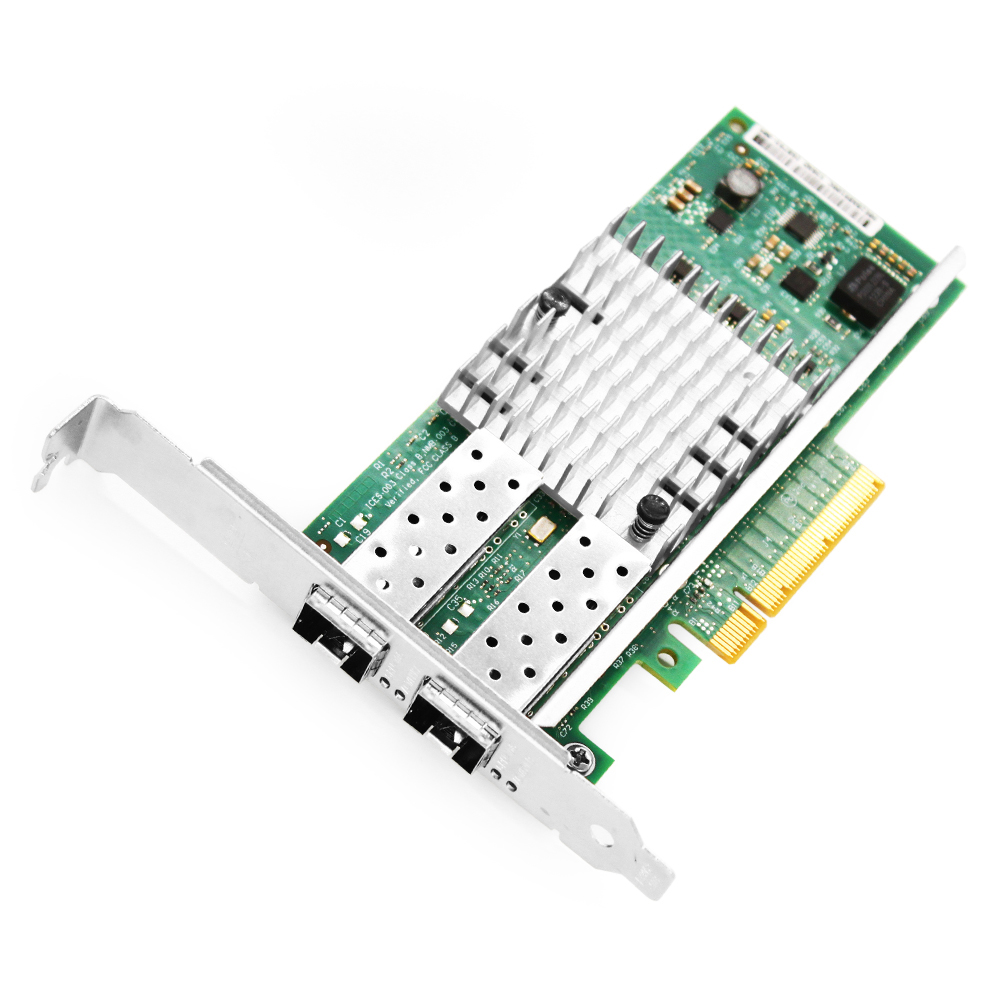

Intel E10G42BFSR(X520-SR2)PCI-E万兆以太网卡服务器适配器

  • 价格:¥1,200.00 元

产品介绍

    万兆双口光纤以太网卡

    PRODUCT CODE: E10G42BFSR  X520-SR2

    Key Features

    l 82599 10 Gigabit Ethernet Controller : Industry-leading, energy-efficient design for next-generation 10 Gigabit performance Intel and multi-core processors

    l SFP+ Connectivity: X520 Adapters with SFP+ connections support 10GBASE-SR, 10GBASE-LR and SFP+ Copper Direct  Attach physical media.

    l Low-profile : Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers

    l Load balancing on multiple CPUs : Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*

    l iSCSI remote boot support:Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions

    l : Includes FCoE Boot and Data Center Bridging

    l Support for most network operating systems (NOS): Enables widespread deployment

    l Intel PROSet Utility for Windows* Device Manager: Provides point-and-click management of individual adapters, advanced adapter features, connection  teaming, and virtual local area network (VLAN) configuration

    l Time Sync (IEEE 1588*, 802.1as):Enables networked Ethernet equipment to synchronize internal clocks according to a network master clock; endpoint can then acquire an accurate estimate of the master time by compensating for link latency

    Specifications

    General

    Connectors  :                   One or two LC fiber-optic connectors

    SFP+ Direct Attach cables (E10G42BTDA)

    Network Standards   :           IEEE 802.3:

    Physical Layer Interface           10GBASE-SR (E10G41BFSR, E10G42BFSR)

    10GBASE-LR (E10G41BFLR)

    SFF-8431:

    10GSFP+Cu (a.k.a. Direct Attach)

    (E10G42BTDA)

    Technical

    Data rate supported per port:    Optical: 1 GbE/10 GbE

    Direct Attach: 10 GbE

    Bus type :                    PCI Express* 2.0 (5 GT/s)

    Bus width :                   4-lane PCI Express; operable in x4, x8 and x16 slots

    Interrupt levels :               INTA, MSI, MSI-X

    Controller-processor:           Intel 82599 Ethernet Controller

    Power consumption  :

    SKU                                 Maximum Power        Typical Powe

    Dual-port 10GBASE-SR/1000BASE-SX     6.8 W                  6.5 W

    Dual-port 10GBASE-LR/1000BASE-LX      7.0 W                 6.6 W

    Dual-port direct attached twinax          6.2 W                 5.8 W

    Single-port 10GBASE-SR/1000BASE-SX    4.8 W                 4.5 W

    Single-port 10GBASE-LR/1000BASE-LX    4.8 W                 4.5 W

    Single-port direct attached twinax        4.6 W                  4.3 W

    Operating temperature :        0to 55(32to 131)

    Storage temperature :          -40to 70 (-40to 158)

    Storage humidity :             90% non-condensing relative humidity at 35 ¡ãC

    Connect Speed LED Indicators :   LINK (solid) and ACTIVITY (blinking)

    LINK SPEED (green=10 Gbps; yellow=1 Gbps)

    Advanced Technologies

    Intel® Ethernet Power Management  Yes

    Intel® Data Direct I/O Technology        Yes

    Intelligent Offloads                Yes

    Storage Over Ethernet              iSCSI , FCoE , NFS

    Intel® Virtualization Technology for Connectivity

    On-chip QoS and Traffic Management      Yes

    Flexible Port Partitioning                 Yes

    Virtual Machine Device Queues (VMDq)     Yes

    PCI-SIG* SR-IOV Capable                 Yes

    Physical Dimensions

    Length:                      13.54 cm (5.33 in.)

    Width:                       6.89 cm (2.71 in.)

    Full-height end bracket:         12.0 cm (4.725 in.)

    Low-profile end bracket :        7.92 cm (3.117 in.)

    Supported Operating Systems:

    Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008* SP2, Windows Vista* SP2, Windows Server 2003 R2*, Windows Server 2003* SP2, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, VMware ESX/ESXi*
